GYXH-35 Laboratory Ice Maker
In terms ofmanufacturing technology, we have core personnel with over 25years of experience in mechanical and electronic technology. Ourcircuit control systems are independently developed and holdmultiple patents, providing strong technical assurance for customerapplications
Product Message
- Product Description
- Product parameters
-
Ice production: 35kg/24h. Desktop Standard Version GYXH-35 desktop snowflake ice machine can efficiently produce amorphous, small-particle snowflake-shaped crushed ice. This type of ice can penetrate narrower gaps, has a fast cooling speed, and provides a good ice bath effect. It is specially designed for laboratories, particularly suitable for use in laboratories such as life sciences, medicine, agriculture, forestry, animal husbandry, fisheries, inspection, and quarantine. This ice machine is easy to operate, equipped with a voice prompt system. The entire system and casing can be separated for convenient maintenance. Its appearance is exquisite and beautiful, and it occupies a small area.
Model specifications comparison:
Model GYXH-35 Other similar model products Ice shape Irregular small granular snowflake-like crushed ice Irregular small granular Ice production (KG/24 hours) 35 30 Ice storage capacity (KG) 10 10 Color Grayish white Grayish white External dimensions (MM) 332*512*520 Unknown Reducer deceleration method Right-angle hollow type (durable) Worm gear type Compressor Industry leading brand Not identified Microcomputer control system Yes Yes Anti-jam intelligent program settings Yes No Voice broadcast system Yes No LCD screen displays operation process Yes No Induction control method Infrared light sensor (unaffected by ambient temperature) Temperature sensing
Note: The output is measured under conditions of 18 degrees Celsius room temperature and 18 degrees Celsius water temperature
Product Use
The ice produced by snowflake ice machines is relatively moist, with a water content generally between 15% and 25%, slightly below zero degrees Celsius, has good plasticity, and is easy to retrieve and pile up,
The irregular small granular snowflake-like crushed ice produced can penetrate narrow gaps, has a fast cooling speed, and good ice bath effect. It is specially designed for laboratories, particularly suitable for use in life
sciences, medicine, agriculture, forestry, animal husbandry, fishery, inspection and quarantine laboratories, etc.
Product Features
Easy to operate, one-button process from water intake, ice making, ice crushing, extrusion, to snowflake ice output, and automatic shutdown when ice is full
The entire operation process is completed by microcomputer self-control. Corresponding indicator lights will show; when the operation light is on and the ice storage bin full indicator light is on, it will stop running

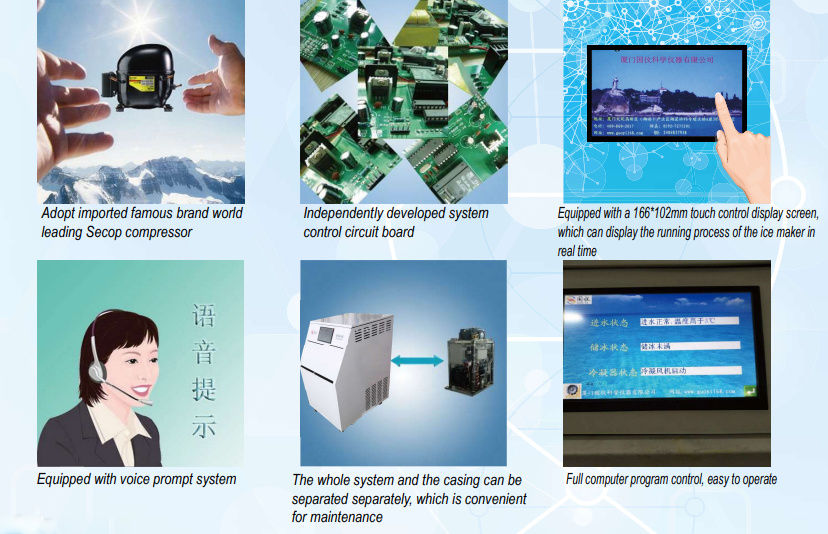

Adopts well-known industry-leading brand compressors, ensuring stable and reliable operation
Adopts a cavity partition structure, resulting in high ice making efficiency and large ice output
Full computer program control, convenient operation
The ice storage bin uses fluorine-free polyurethane foaming, providing excellent insulation
Environmentally friendly refrigerant, R404A
Equipped with a 166*102mm touch control display screen, showing the ice machine operation process in real-time
Equipped with a voice prompt system (voice prompts for important statuses)
The entire machine system and casing can be separated, making maintenance convenient
Unique Safety Design
Automatically detects whether the ice blade is operating during startup to prevent the ice blade from jamming;
Shuts down when the external water cut-off indicator light is on;
Automatically detects inlet water temperature and condensing temperature to adjust ice production;
When water cut-off or ice full shutdown occurs, the refrigeration system is first turned off, and the ice blade continues to operate for 60 seconds before shutting down automatically,
to prevent the ice blade from being frozen when the system is started immediately
Model Specifications
Product Model: GYXH-35
Output: 35KG/24H
Ice Storage Capacity: 10 KG
Ice Shape: Irregular small granular snowflake-like crushed ice
Color Standard Version: Grayish white
External Dimensions: 332*512*520 MM
